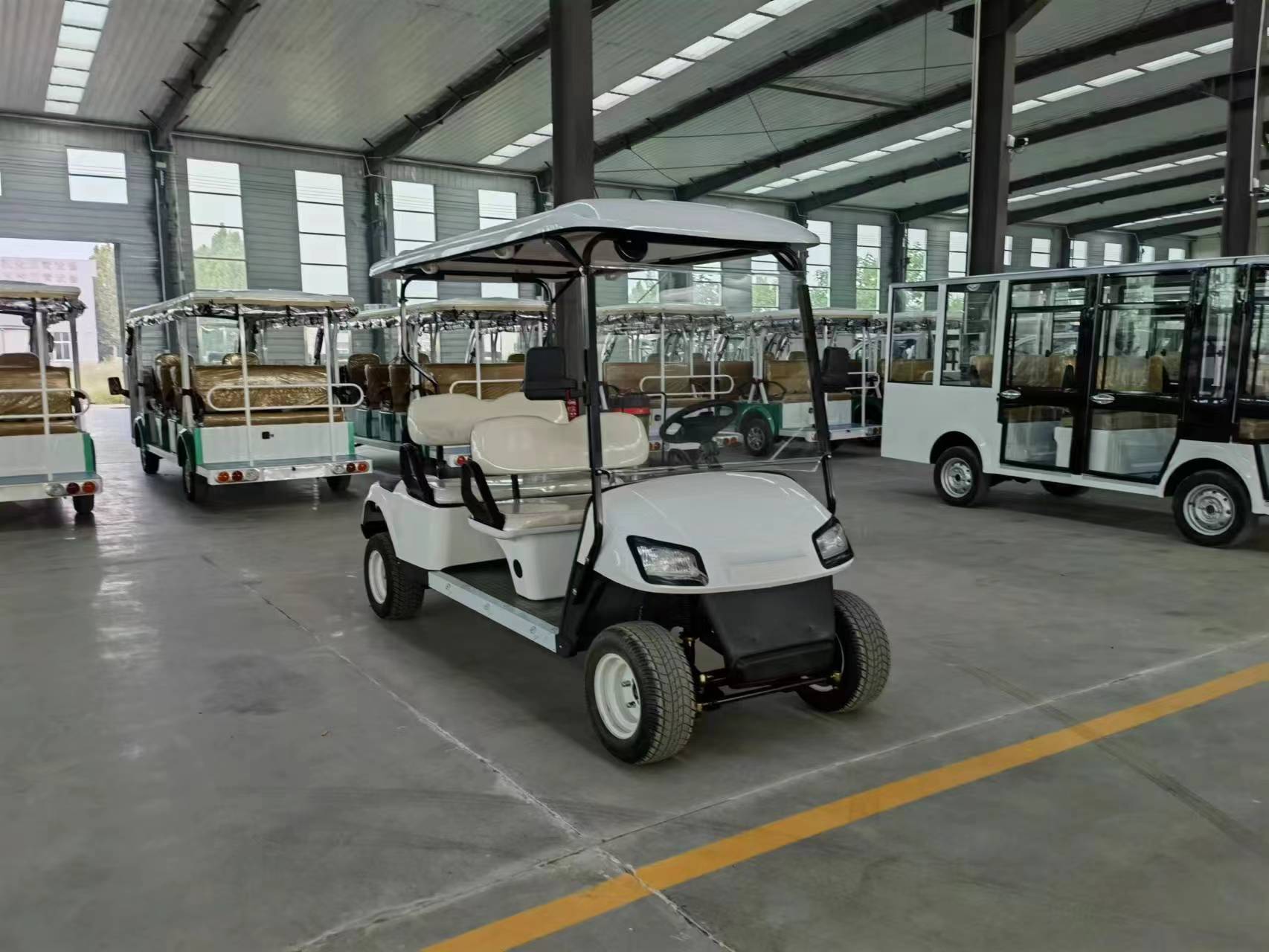

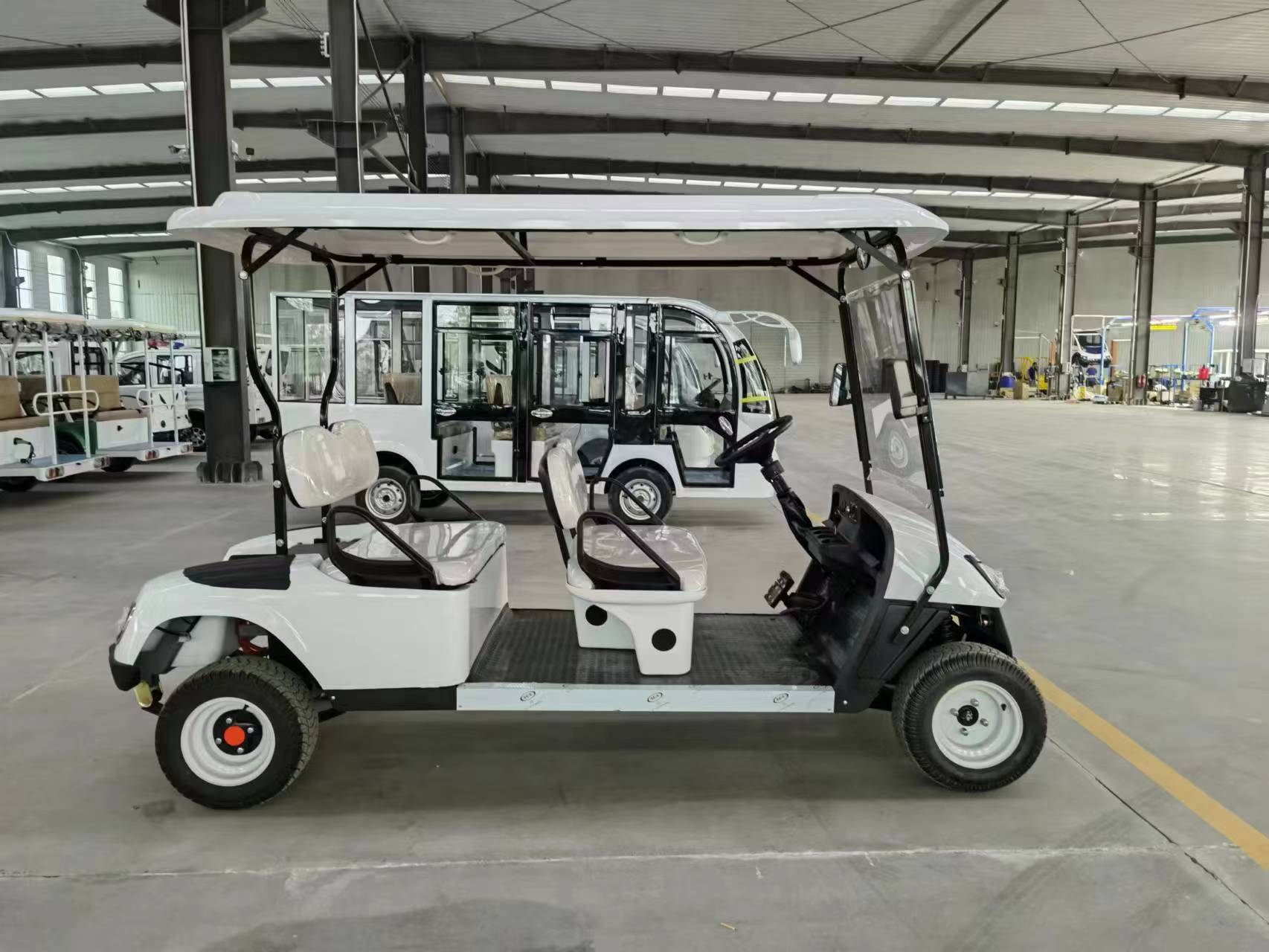

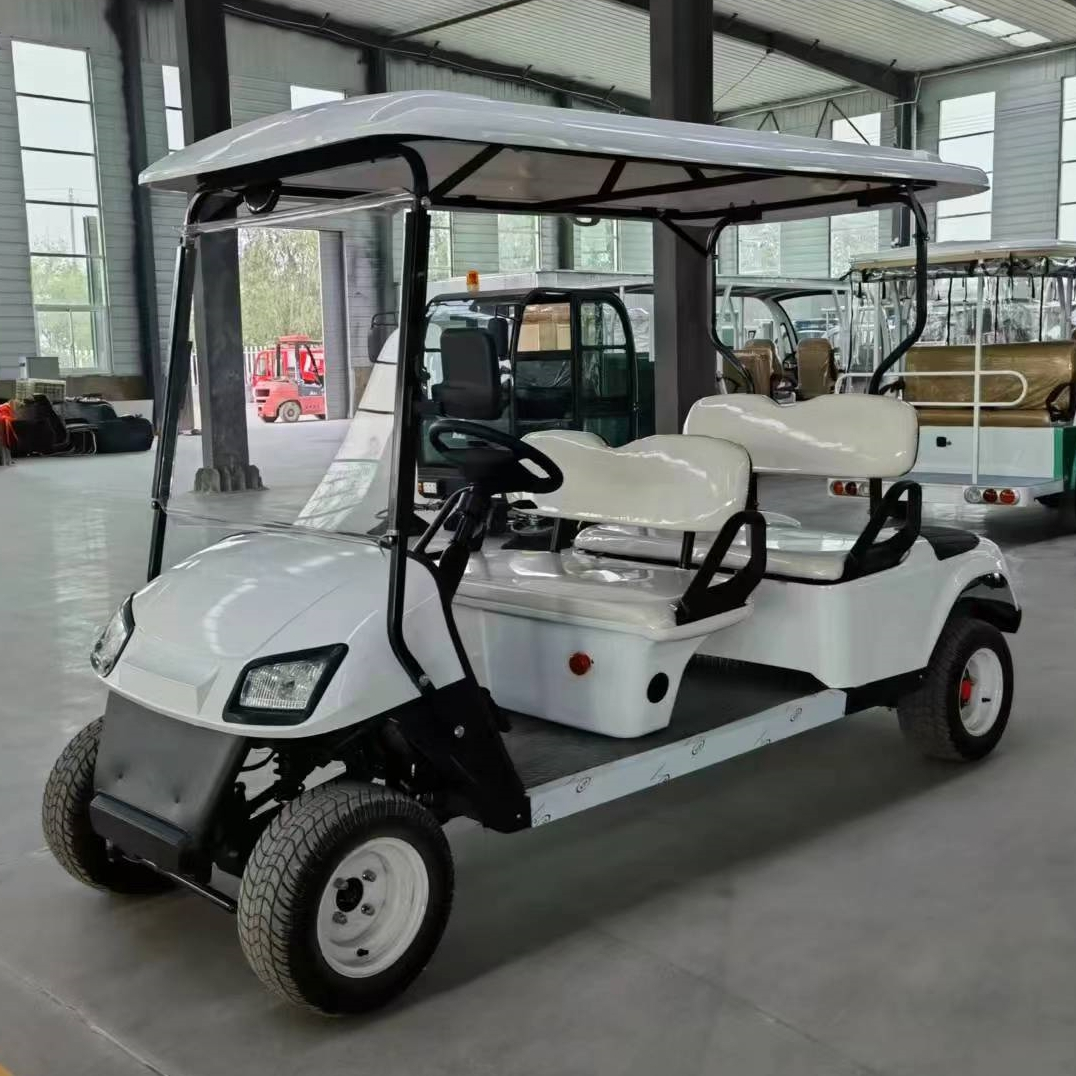

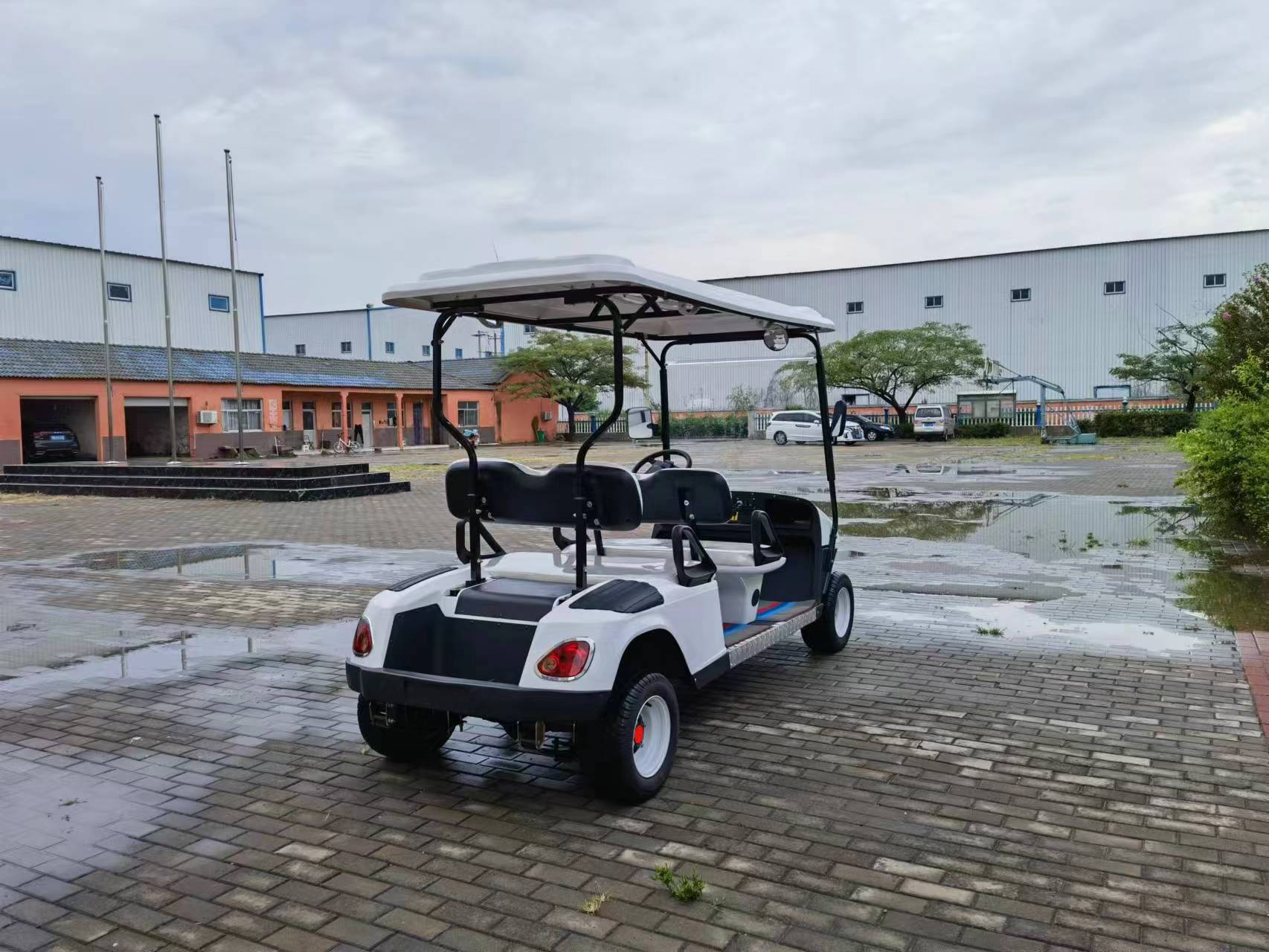

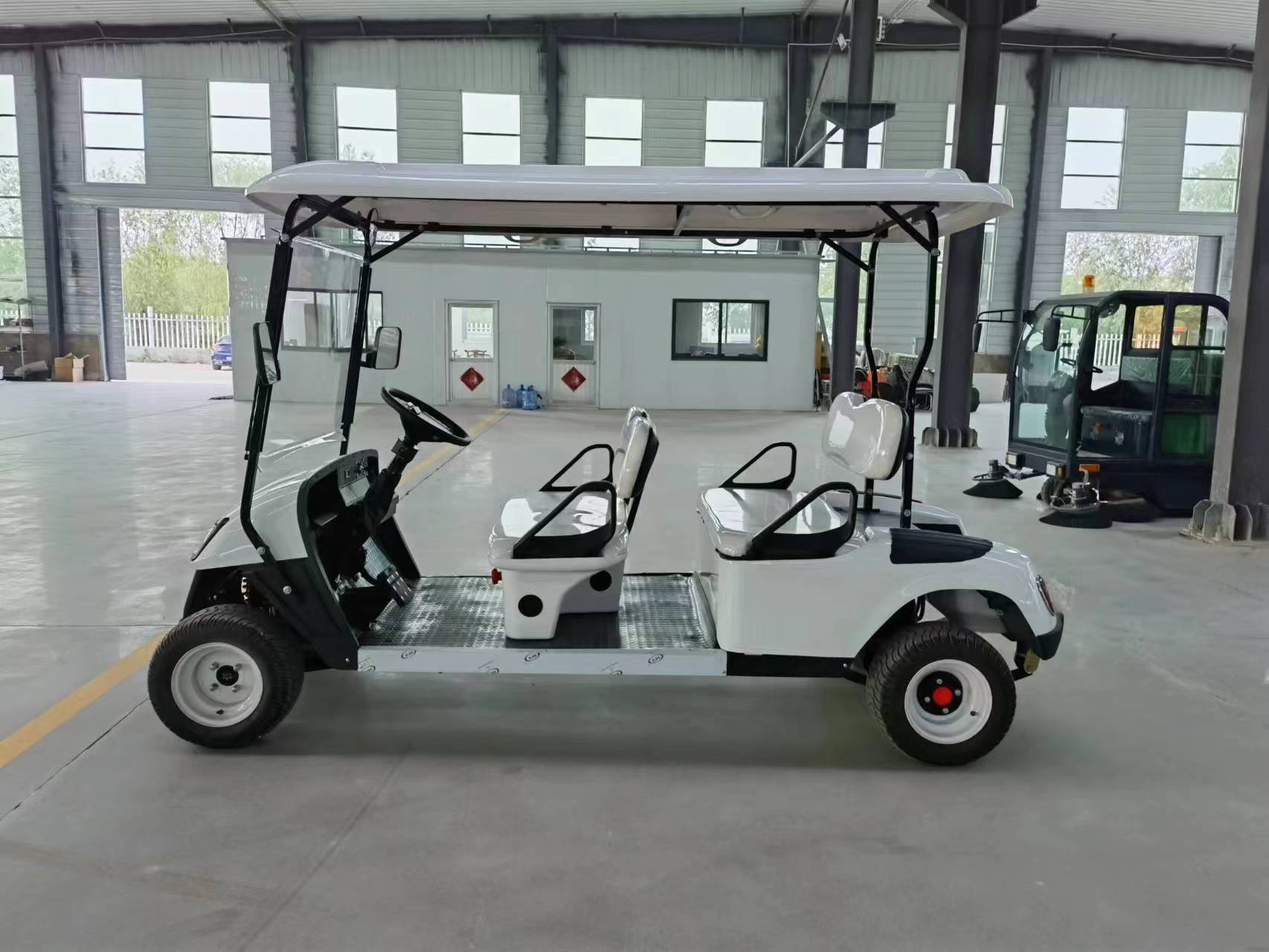

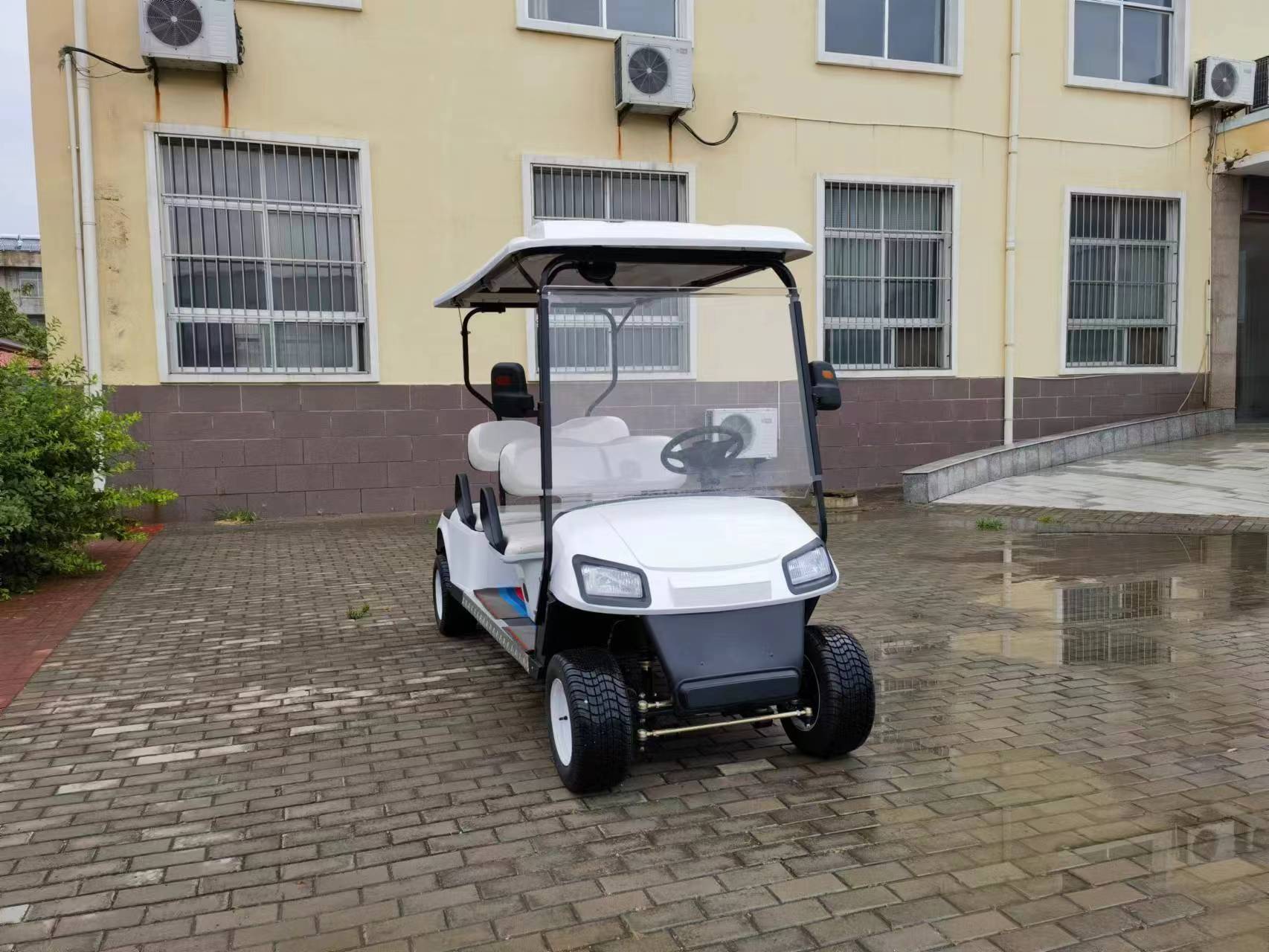

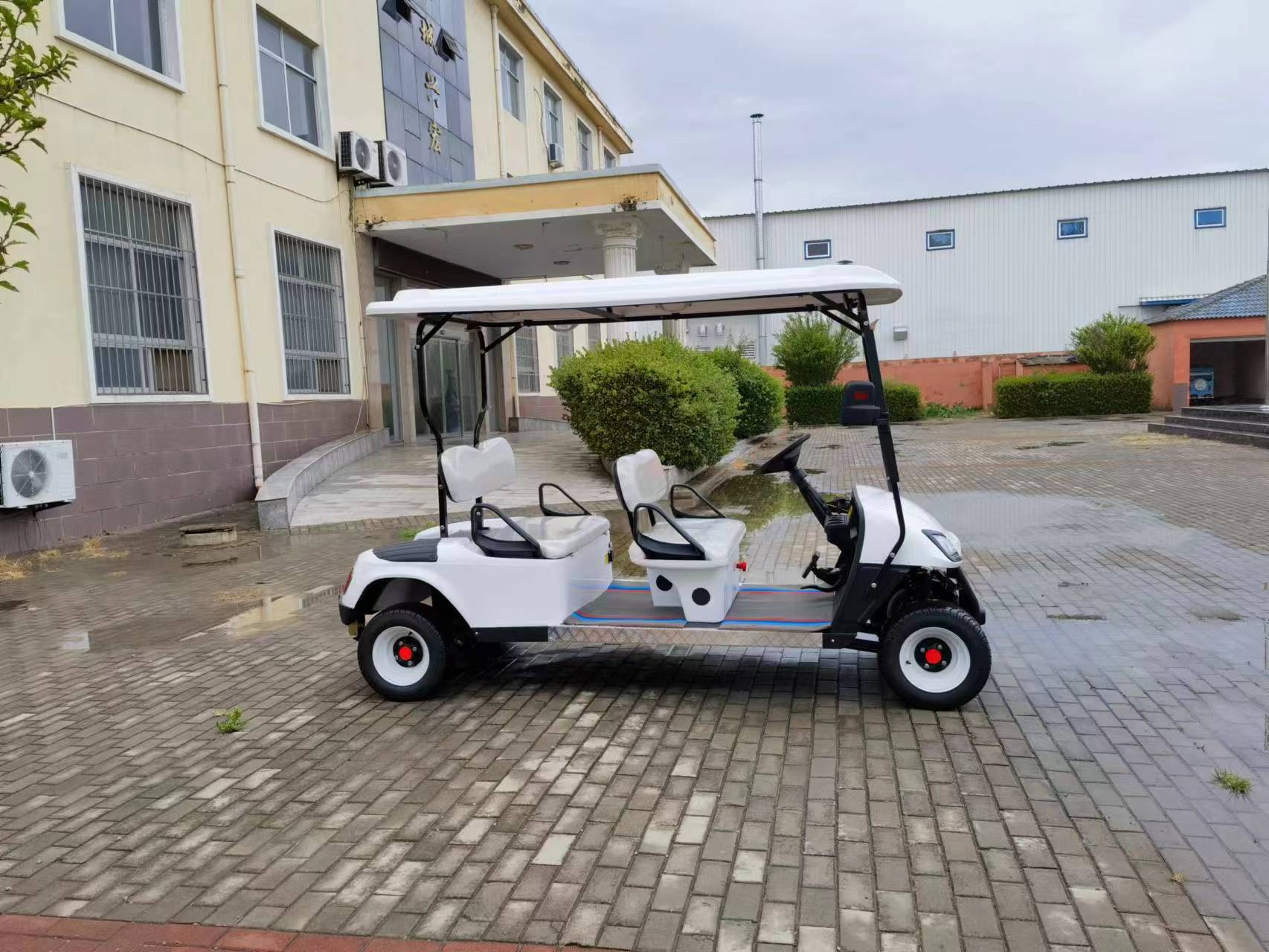

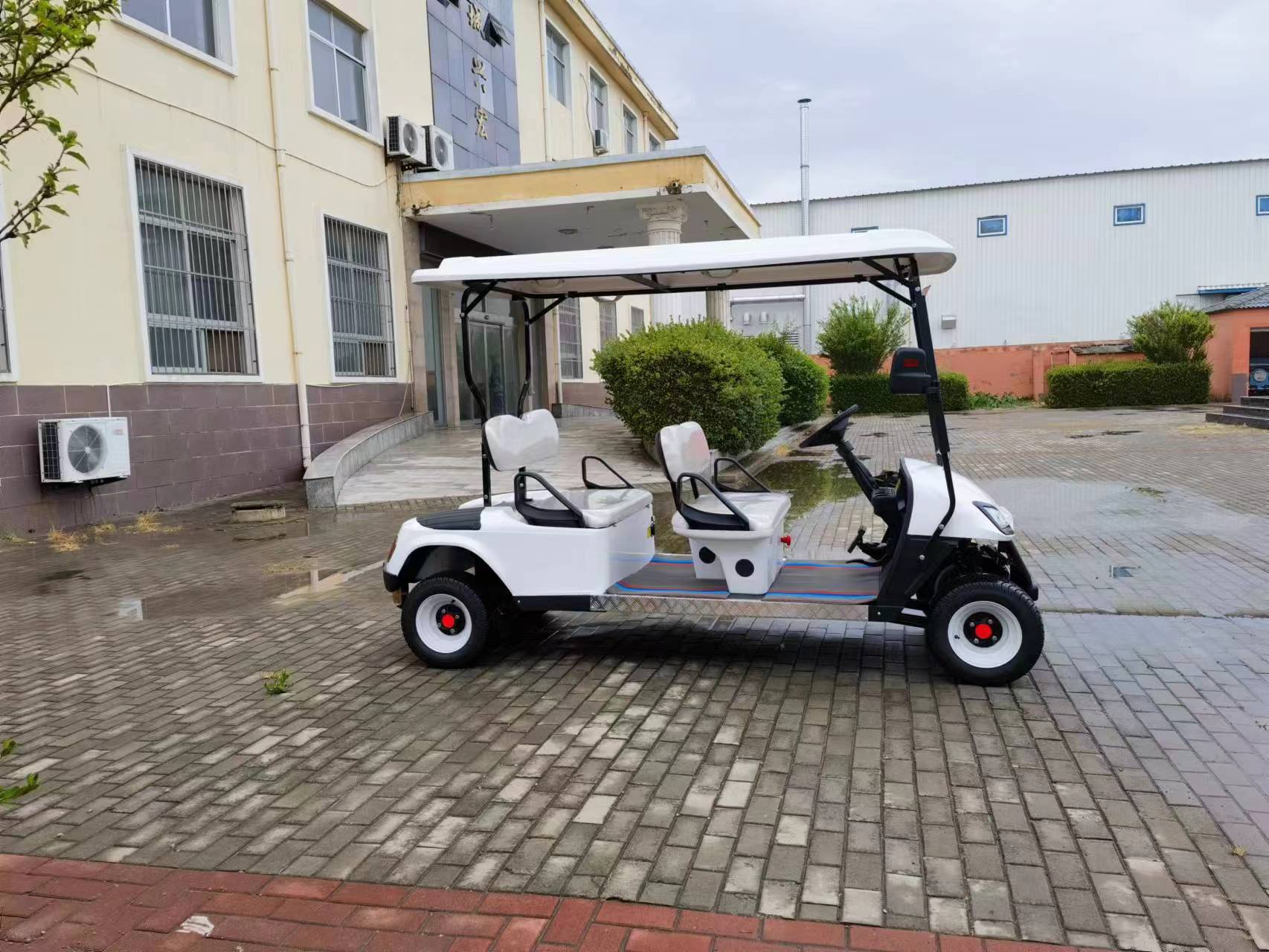

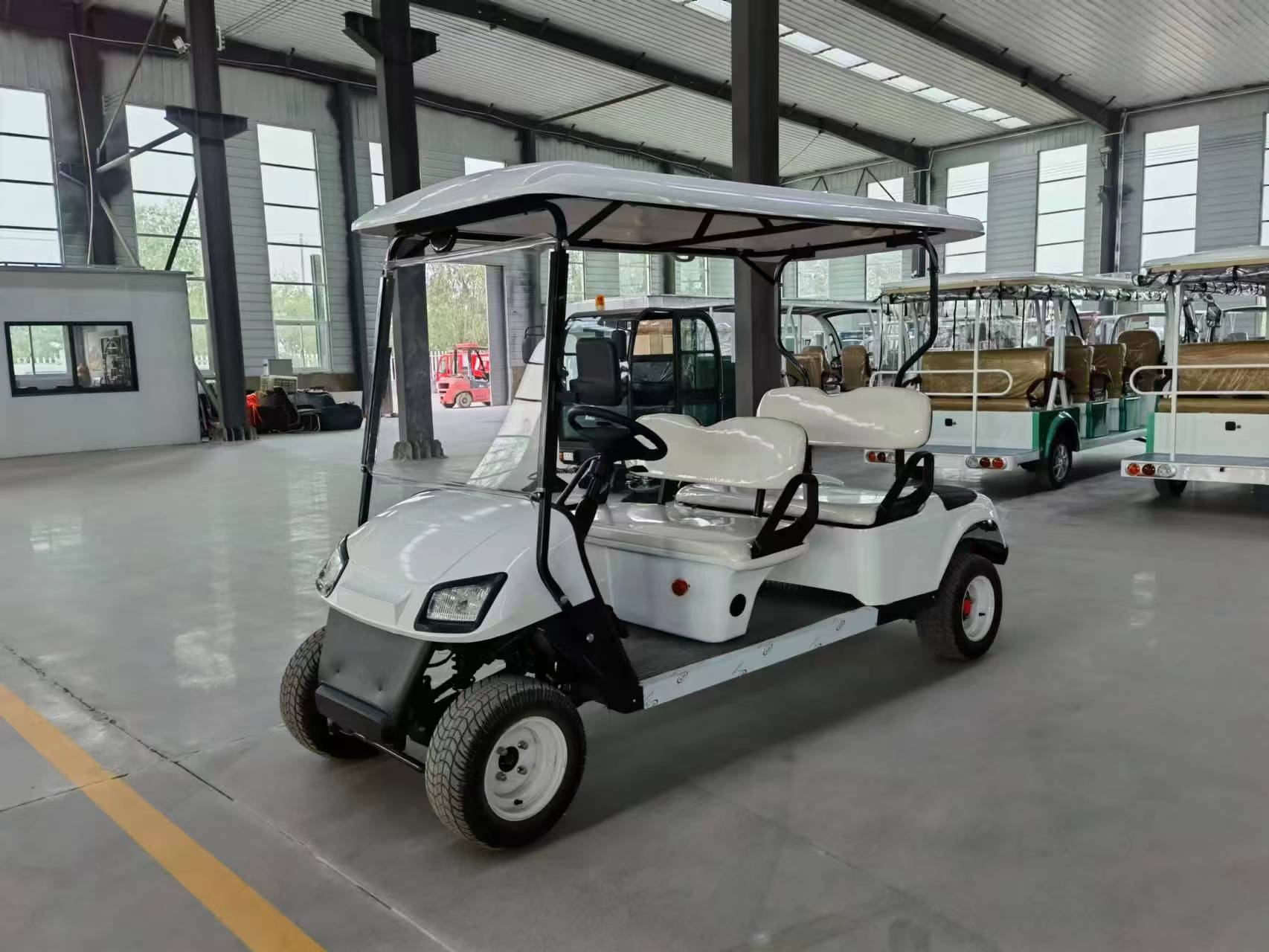

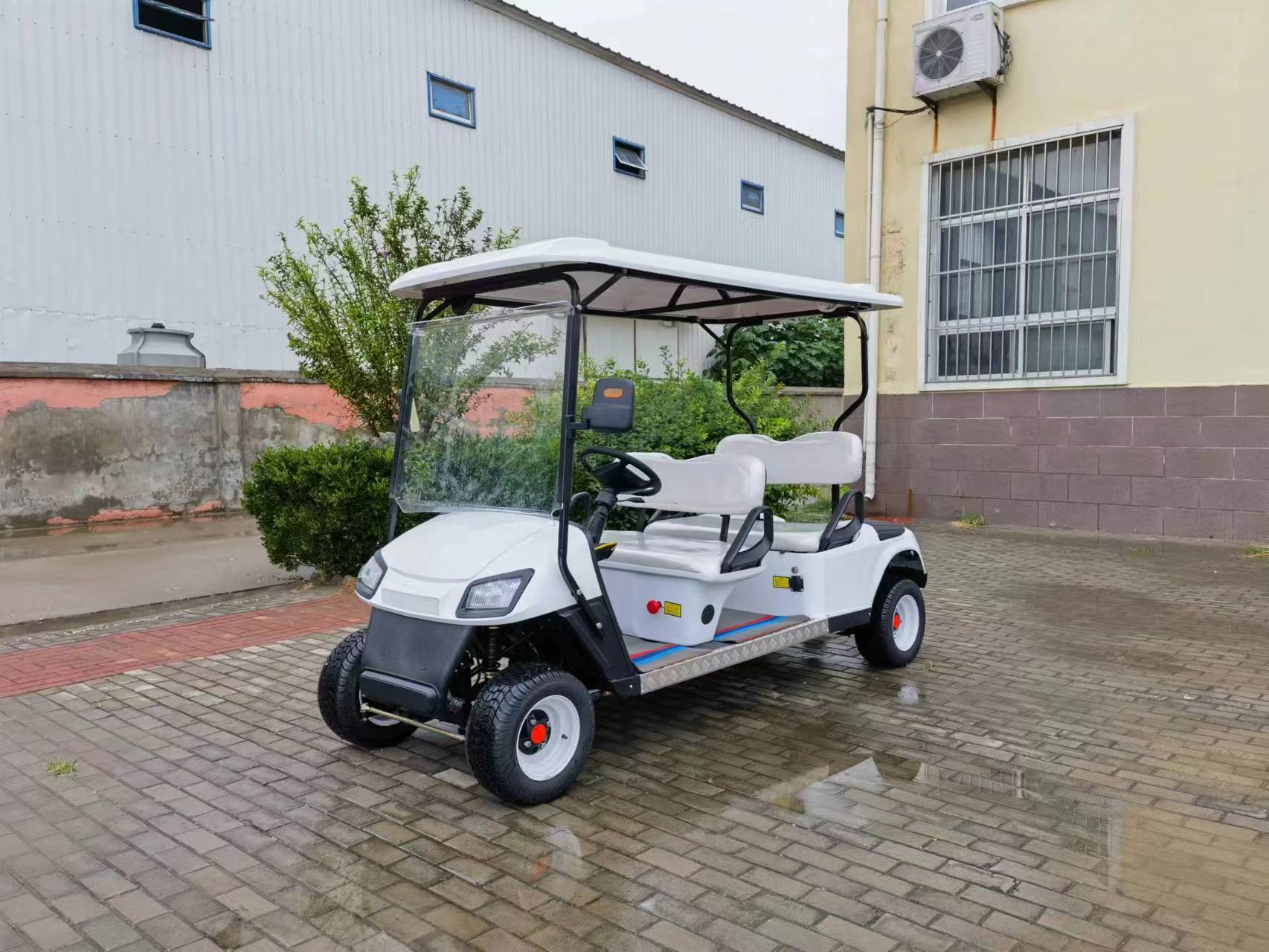

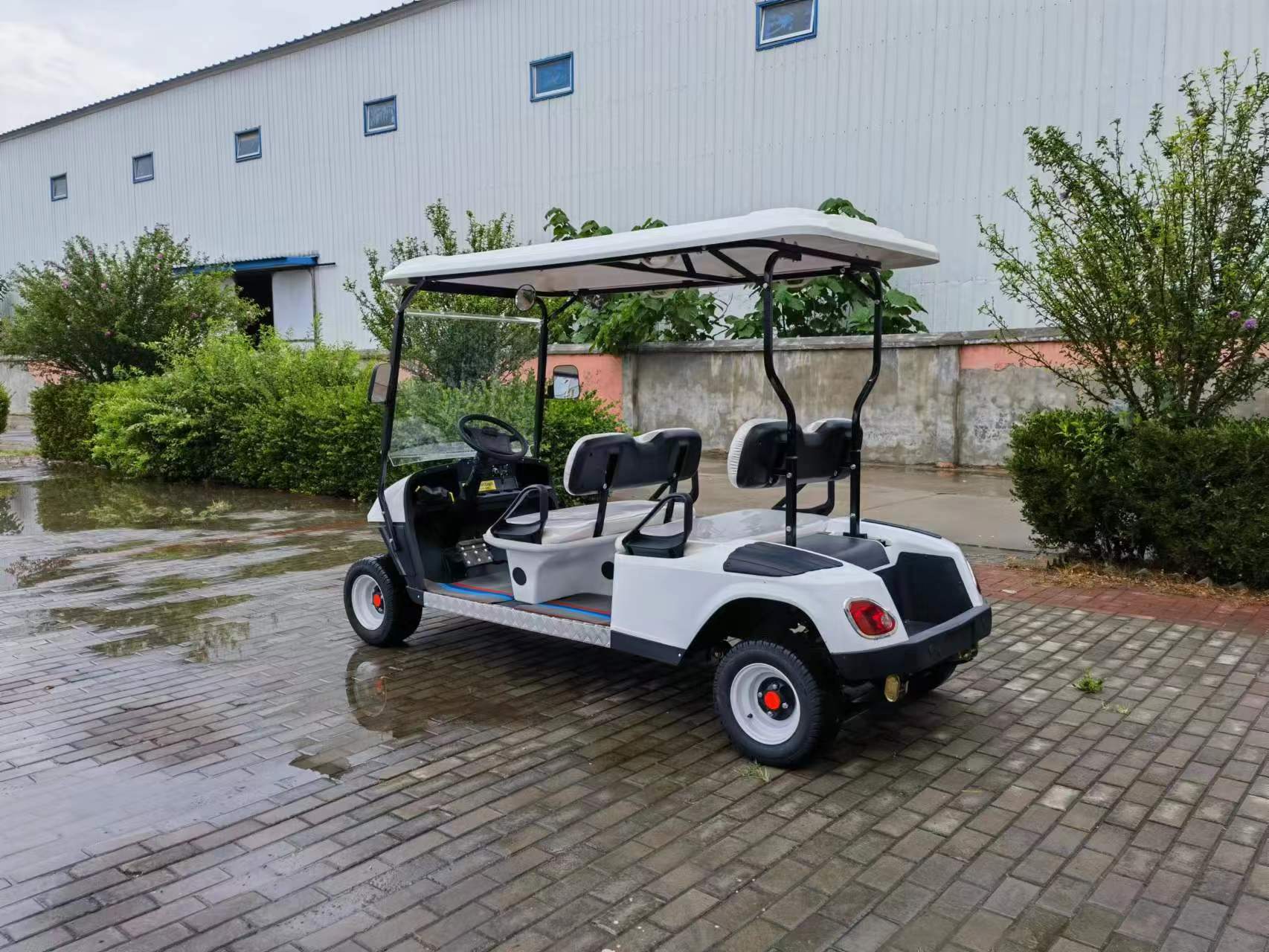

4 Seats Golf Car Configuration | ||||
Electrical System | Controlled | Enpower 3528 |
| |
Battery | 72v-70ah lithium Battery | |||
Motor | 5kw Rated Power(10kw Peak Power) | |||
Charger | Vehicular Charge | |||
Charging Time | 8-10hours | |||
Technical Parameters | Charging Input Voltage | 110-250v | ||
Range | 55miles | |||
Length*Width*Height | 3250*1300*1900mm | Max Loading People | 4 | |
CVW | 560kg | Maximum Speed | 20m/h | |
GVW | 900kg | Maximum Grade | 30% | |
Front Track | 990/1000mm | Turning Radius | 6m | |
Wheelbase | 1630mm | Recharge Mileage | 55miles | |
Minimum Ground Clearance | 2350mm | Braking Distance | 5m | |
Body System | Seats | Available In White Or Black Seats | ||
Body | Abs Plastic Craft Body | |||
Dash | Instrument Display (Including Voltage, Current) | |||
Rearview Mirrors | Manual Rearview Mirror | |||
Lights & Signals | Headlights, Turn Signals, Rear Lights, | |||
Audio | Car With Mp3, 2 Speakers | |||
Switch | Start Switch, Light And Wiper Combination Switch, Forward And Reverse Gear Switch | |||
Door | None | |||
Frame | One-Piece Frame | |||
Steering Wheel | Polyurethane Foam Steering Wheel | |||
Chasis | Powertrain | e-Cvt | ||
Steering System | e-Power Steering | |||
Front Axle And Suspension | Leaf Spring | |||
Rear Axle And Suspension | Integral Rear Axle + High-Strength Leaf Spring + Cylinder Hydraulic Shock Absorption | |||
Braking System | Front And Rear Drum Hydraulic Brakes, Dual-Circuit Hydraulic Brakes, Parking Brake Device | |||
Wheels | 205-10 | |||
